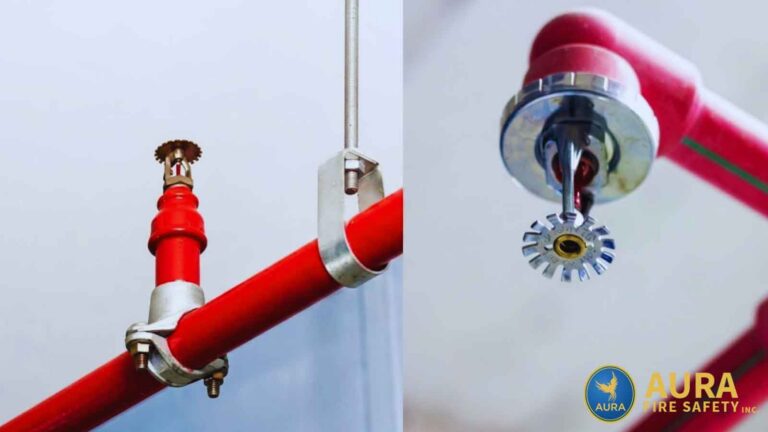

Dry Pipe vs. Wet Pipe Sprinkler Inspections: What Differs at Inspection Time

Dry pipe and wet pipe fire sprinkler systems share the same core inspection requirements under NFPA 25 and California Title 19, but dry pipe systems require additional tests and checks that wet pipe systems do not. The differences are not minor procedural variations. They reflect the fundamentally different mechanics of how each system type operates, and they have direct implications for inspection scheduling, documentation, and compliance timelines.

Property managers and building owners overseeing buildings with dry pipe systems need to understand what those additional requirements are, why they exist, and what a complete fire sprinkler inspection should include.

What Is the Difference Between a Wet Pipe and Dry Pipe Sprinkler System?

A wet pipe sprinkler system keeps water constantly pressurized in the piping at all times. When a sprinkler head reaches its activation temperature, the heat-sensitive element releases, and water discharges immediately. Wet pipe systems are the most common type in Bay Area commercial and multi-unit residential buildings because they are the simplest, most reliable configuration for heated interior spaces.

A dry pipe system keeps the piping filled with pressurized air or nitrogen instead of water. When a sprinkler head activates, the air pressure drops, a dry pipe valve opens, and water enters the system from the supply side before flowing to the activated head. Dry pipe systems are used in spaces where the piping could freeze if water were present, such as unheated parking garages, loading docks, exterior walkways, and cold storage areas.

The operational difference between these two system types is the source of the inspection differences. A dry pipe system has components that a wet pipe system simply does not have: the dry pipe valve, the air supply, the pressure differential between the air side and the water side, and the timing requirement for water delivery after a head activates. All of these require inspection and testing steps that go beyond what a wet pipe inspection covers.

ALSO READ: Fire Safety and Compliance for Property Managers: A Complete Operational Guide

What Stays the Same Regardless of System Type?

The majority of fire sprinkler inspection requirements apply equally to wet and dry pipe systems. Both system types follow the same core NFPA 25 schedule: quarterly visual inspections, annual functional testing, and a 5-year certification that includes an internal pipe inspection and full-flow test. Both require the same checks at the quarterly level.

During a quarterly inspection on either system type, a technician checks sprinkler heads for corrosion, paint overspray, physical damage, or loading that could prevent proper activation. Valve positions are confirmed and piping is examined visually. Signage at risers and control valves is verified. Neither system type requires water to be flowed during a quarterly inspection.

At the annual level, both systems require a main drain test, functional testing of water flow switches and tamper switches, pressure gauge verification, and alarm device testing. The Title 19 certification process applies to both. Documentation requirements are the same: a written report, deficiency categorization, and certification issuance upon passing. The overlap is substantial. The differences are layered on top of this shared foundation, not in place of it.

What Additional Steps Does a Dry Pipe System Require at Inspection?

Dry pipe systems require several inspection and testing elements that wet pipe systems do not. These additional requirements exist because the dry pipe valve and air supply system introduce failure points that have no equivalent in a wet pipe system.

The most significant additional requirement is the dry pipe valve trip test. NFPA 25 requires dry pipe valves to be trip-tested on a defined schedule. During a trip test, the system is taken through a controlled activation sequence: the air pressure is bled down, the dry pipe valve is allowed to open, and the system fills with water. The technician observes the valve operation, confirms the priming water level, checks the accelerator or exhauster function where present, and verifies the water delivery time. After the test, the system must be drained, dried, and restored to service.

Additional dry pipe-specific checks include:

• Air pressure monitoring: The air or nitrogen pressure in the dry pipe system must be within the range specified by the manufacturer and NFPA 25. Low air pressure can cause the dry pipe valve to trip unintentionally. High pressure can delay valve opening at activation.
• Priming water level: Dry pipe valves maintain a small amount of priming water on the water supply side of the valve seat. This level must be within the specified range. Too little priming water allows air to leak into the water supply piping. Too much can cause the valve to trip.
• Accelerator and exhauster function: Many dry pipe systems include an accelerator or quick-opening device to reduce the time between sprinkler activation and water arrival. These devices require inspection and functional testing to confirm they operate within design parameters.
• Drum drip inspection: Low points in dry pipe piping where condensation can accumulate are fitted with drum drips. These require inspection and draining at each visit to prevent water accumulation that could freeze or interfere with system drainage.

None of these elements exist in a wet pipe system. A wet pipe inspection skips every item on this list.

ALSO READ: The 5 Most Common Fire Inspection Failures (And How to Fix Them)

Why Does the Dry Pipe Valve Trip Test Matter?

The dry pipe valve trip test is the most consequential additional requirement for dry pipe systems because it tests the single component that determines whether the system can actually deliver water in a fire. A wet pipe system delivers water the moment a head activates. A dry pipe system delivers water only if the dry pipe valve opens correctly and the air evacuates from the piping fast enough.

The trip test verifies the valve opens under controlled conditions, confirming the differential pressure mechanism functions, the clapper releases without sticking, and the system transitions from air-pressurized to water-filled within an acceptable timeframe. A dry pipe valve that passes every visual inspection can still fail to trip correctly due to corrosion on the valve seat, a seized clapper, or a degraded diaphragm. The trip test is the only way to catch these problems.

NFPA 25 requires full trip tests on an annual basis, with the valve taken to full open position and water delivered to the inspector’s test connection. In off years, a partial trip test that takes the valve to the tripping point without fully opening is acceptable in some configurations. The frequency and method depend on the valve manufacturer’s requirements and the AHJ’s expectations. In San Francisco, the SFFD may have specific documentation requirements for dry pipe valve trip testing that go beyond the NFPA 25 minimum.

How Does Water Delivery Time Factor Into Dry Pipe Inspections?

Water delivery time is a compliance metric that applies to dry pipe systems and has no equivalent in wet pipe inspections. NFPA 25 requires that water reach the inspector’s test connection within 60 seconds of a sprinkler head activating in a dry pipe system. This requirement reflects the life safety purpose of the system: occupants need sprinkler activation to suppress fire quickly, and a long delay between head activation and water delivery reduces the system’s effectiveness.

During a trip test or an annual inspection that includes full water delivery verification, the technician measures the time from when the dry pipe valve trips to when water appears at the inspector’s test connection. If that time exceeds 60 seconds, the system fails the delivery time requirement. Common causes include oversized dry pipe systems where the air volume is too large for the available water pressure to evacuate quickly, malfunctioning accelerators or exhausters, or undersized water supply connections.

Wet pipe inspections involve no delivery time measurement because there is no delay. Water is already in the piping and discharges within seconds of head activation. The 60-second requirement is a dry pipe-only compliance standard.

ALSO READ: How Often Does Fire Safety Need to Be Inspected in California?

What Do Inspection Records Look Like for Each System Type?

Wet pipe and dry pipe inspection reports follow the same general structure under NFPA 25, but dry pipe reports contain additional data fields that wet pipe reports do not. Understanding what should appear in each report helps property managers verify that inspections were conducted correctly and that documentation is complete for AHJ review.

A wet pipe inspection report documents sprinkler head condition, valve positions, gauge readings, alarm test results, main drain static and residual pressure, and any deficiencies found. A dry pipe report includes all of these, plus:

• Air pressure readings at the start and end of the inspection
• Priming water level at the dry pipe valve
• Drum drip condition and drainage results
• Accelerator or exhauster function (if applicable)
• Trip test results including valve opening time and water delivery time
• System restoration documentation confirming the system was returned to service correctly after testing

The restoration documentation is particularly important for dry pipe systems. After a trip test, the system must be fully drained, dried, and recharged with air or nitrogen before it is returned to service. A report that documents the trip test but does not confirm restoration is incomplete. An AHJ reviewing records for a dry pipe system expects to see both the test data and the restoration confirmation.

Aura Fire Safety provides complete inspection documentation for both wet and dry pipe systems, including all required data fields and deficiency categorization. For more on what the full inspection process involves at each interval, see our fire sprinkler inspection services page.

Schedule Your Fire Sprinkler Inspection in the Bay Area

Aura Fire Safety inspects wet pipe and dry pipe fire sprinkler systems for commercial and multi-unit residential properties throughout the San Francisco Bay Area. Our team handles quarterly, annual, and 5-year Title 19 certifications, including all dry pipe-specific testing requirements, and provides written reports and deficiency documentation after every visit. Contact Aura Fire Safety to schedule an inspection or request a quote.

Frequently Asked Questions

How much longer does a dry pipe inspection take compared to a wet pipe inspection?

A dry pipe annual inspection that includes a full valve trip test typically takes longer than a comparable wet pipe inspection because the trip test requires draining, drying, and restoring the system before the visit is complete. The exact time varies based on system size and configuration, but property managers should expect to allow additional time and plan for temporary system downtime during the restoration process.

Does a dry pipe system need to be drained after every inspection?

Not after every inspection. Quarterly visual inspections do not require tripping the valve or flowing water, so no drainage is needed. Annual inspections that include a full trip test do require draining and restoration. The drum drips should be drained at every visit to remove accumulated condensation, but this is a localized drainage of low-point fittings, not a system drain.

Can a building have both wet and dry pipe systems?

Yes. Buildings with mixed occupancies or areas of varying temperature exposure commonly have both. A commercial office building might use a wet pipe system for the heated interior and a dry pipe system for an attached unheated parking structure. Both systems require their own inspection records and follow their respective NFPA 25 requirements. The same licensed contractor can typically inspect and test both.

What triggers an obstruction investigation in a dry pipe system?

NFPA 25 requires an obstruction investigation for dry pipe systems when any of several conditions are present: the system has not been inspected for five or more years, a blockage is suspected based on water delivery time, foreign material is found during a trip test, or the internal pipe examination reveals evidence of corrosion or debris. Dry pipe systems are more susceptible to internal obstructions than wet pipe systems because the cycling of air and water accelerates internal corrosion in some conditions.
